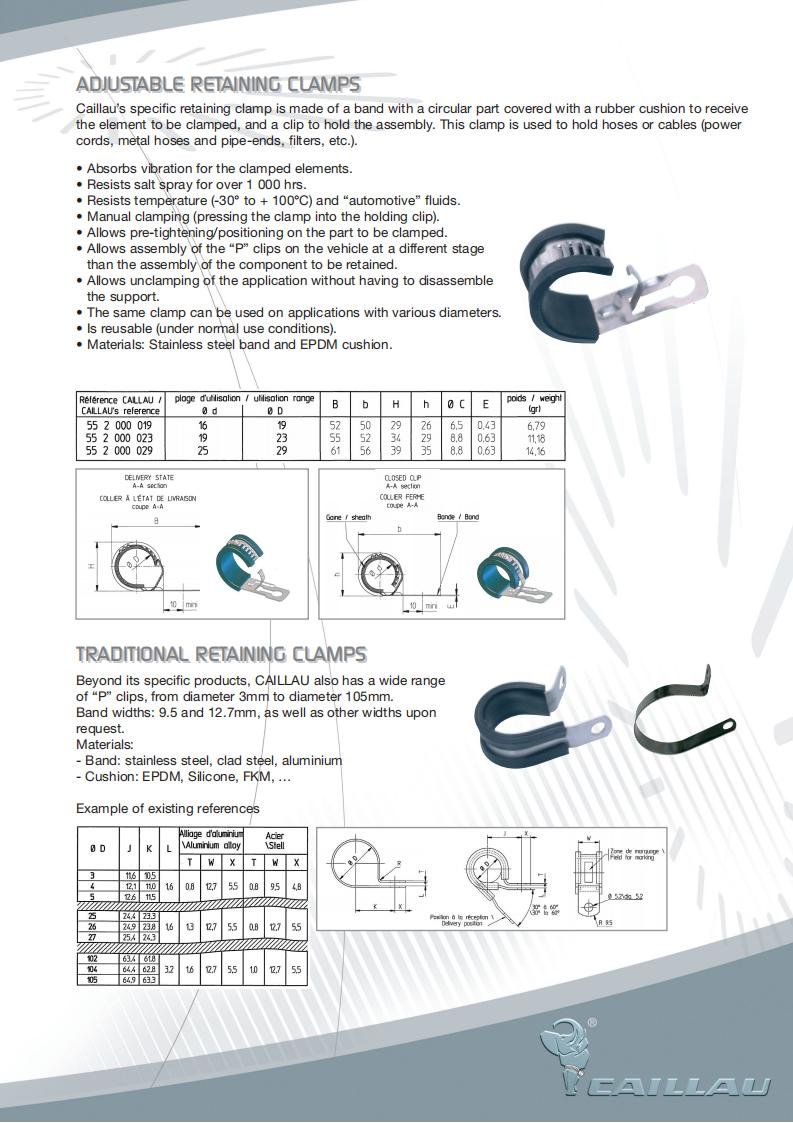

ADJUSTABLE RETAINING CLAMPS

  Caillau’s specific retaining clamp is made of a band with a circular part covered with a rubber cushion to receive the element to be clamped, and a clip to hold the assembly. This clamp is used to hold hoses or cables (power cords, metal hoses and pipe-ends, filters, etc.).

• Absorbs vibration for the clamped elements.

• Resists salt spray for over 1 000 hrs.

 • Resists temperature (-30° to + 100°C) and “automotive” fluids.

 • Manual clamping (pressing the clamp into the holding clip).

• Allows pre-tightening/positioning on the part to be clamped.

• Allows assembly of the “P” clips on the vehicle at a different stage  than the assembly of the component to be retained.

• Allows unclamping of the application without having to disassemble  the support.

• The same clamp can be used on applications with various diameters.

• Is reusable (under normal use conditions).

• Materials: Stainless steel band and EPDM cushion.

TRADITIONAL RETAINING CLAMPS

Beyond its specific products, CAILLAU also has a wide range  of “P” clips, from diameter 3mm to diameter 105mm.

Band widths: 9.5 and 12.7mm, as well as other widths upon request.

Materials:

- Band: stainless steel, clad steel, aluminium

- Cushion: EPDM, Silicone, FKM, …

详情访问： 314-Retaining Clamps.pdf
