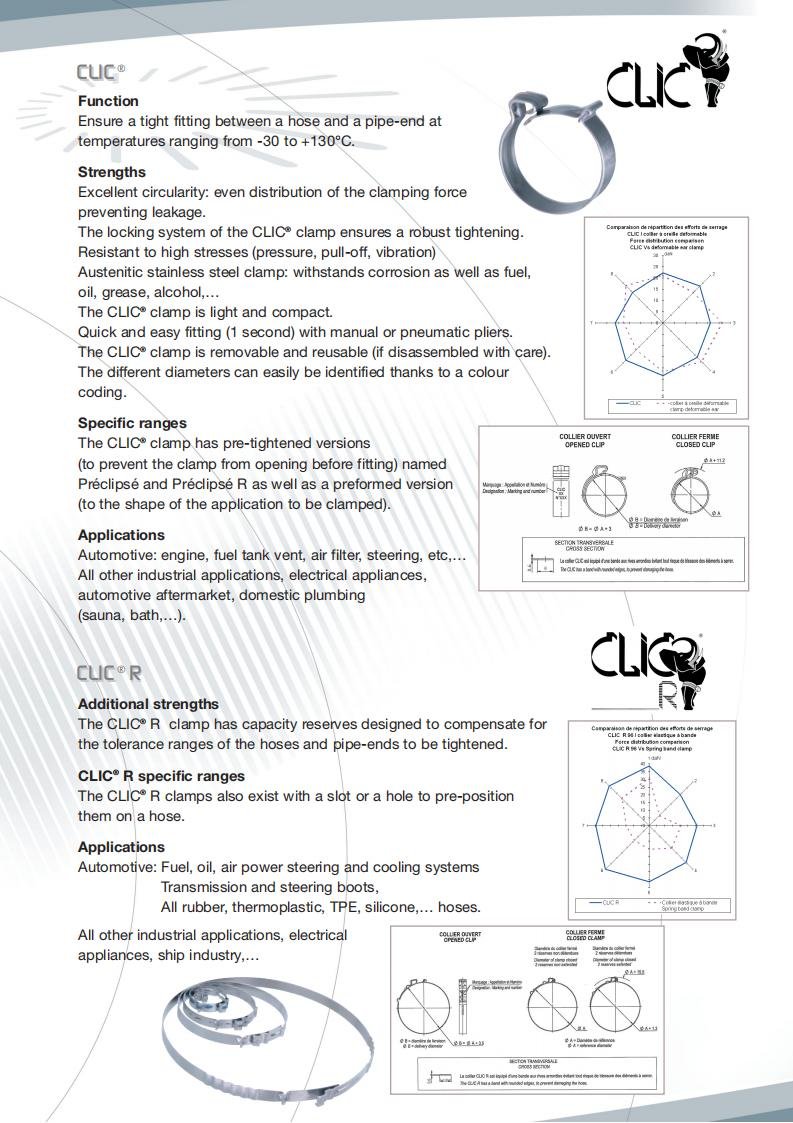

cuc

Function

Ensure a tight fitting between a hose and a pipe-end at temperatures ranging from -30 to +130C.

Strengths

Excellent circularity: even distribution of the clamping force preventing leakage.

The locking system of the CLIC* clamp ensures a robust tightening Resistant to high stresses(pressure,pull-off,vibration)

Austenitic stainless steel clamp:withstands corrosion as well as fuel. oil, grease, alcohol,...

The CLIC clamp is light and compact

Quick and easy fitting (1 second)with manual or pneumatic pliers

The CLIC' clamp is removable and reusable (if disassembled with care) The different diameters can easily be identified thanks to a colour coding.

Specific ranges

The CLICclamp has pre-tightened versions

(to prevent the clamp from opening before fitting)named Préclipsé and PréclipséRas well as a preformed version(to the shape of the application to be clamped)

Applications

Automotive:engine, fuel tank vent, air filter,steering,etc,.. All other industrial applications, electrical appliances, automotive aftermarket, domestic plumbing(sauna,bath,...).

CUICR

Additional strengths

The CLIC'R clamp has capacity reserves designed to compensate for the tolerance ranges of the hoses and pipe-ends to be tightened.

CLICR specific ranges

The CLIC'R clamps also exist with a slot or a hole to pre-position them on a hose.

Applications

Automotive: Fuel, oil, air power steering and cooling systems

Transmission and steering boots

All rubber, thermoplastic,TPE,silicone,... hoses

All other industrial applications, electrical CONFROELTRT

appliances, ship industry,..

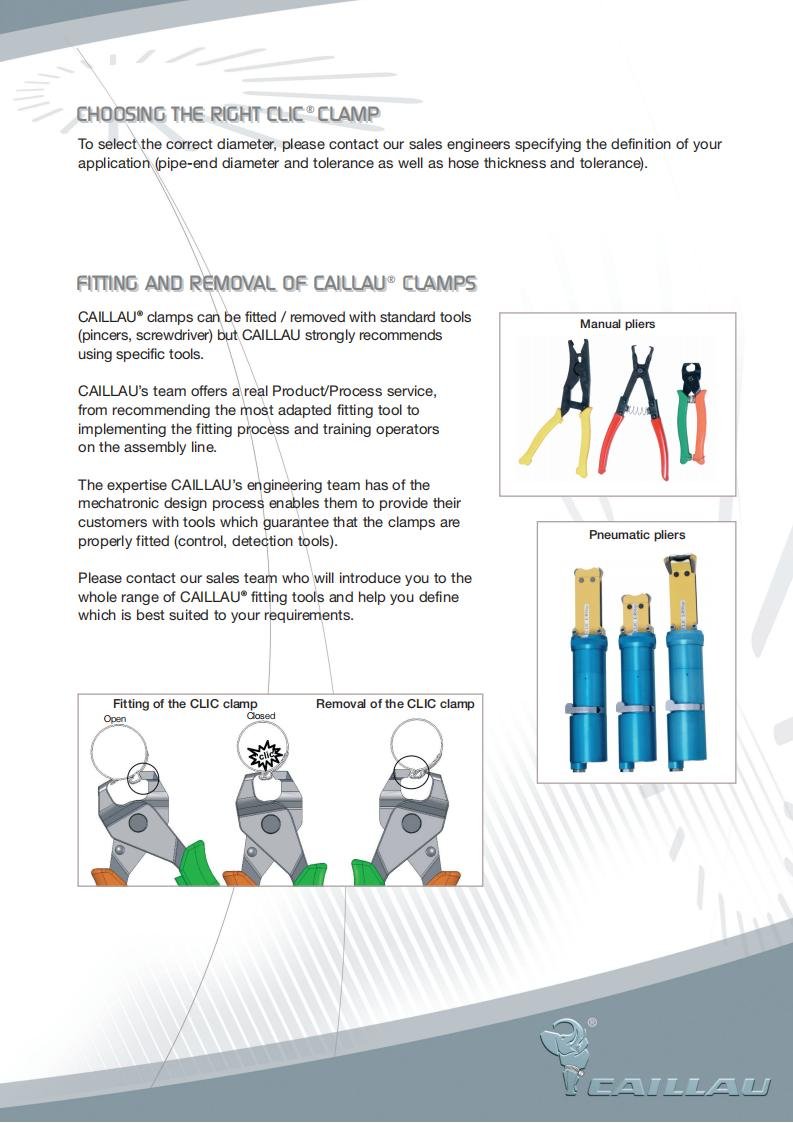

CHOOSING THE RIGHT CLICCLAMP

To select the correct diameter, please contact our sales engineers specifying the definition of your application (pipe-end diameter and tolerance as well as hose thickness and tolerance.

FITTING AND REMOVAL OF CAILLAU CLAMPS

CAILLAUclamps can be fitted/removed with standard tools Manual pliers

(pincers,screwdriver)but CAILLAUstrongly recommends using specific tools.

CAILLAU's team offers a real Product/Process service from recommending the most adapted fitting tool to implementing the fitting process and training operators on the assembly line.

The expertise CAILLAU's engineering team has of the

mechatronic design process enables them to provide their customers with tools which guarantee that the clamps are

properly fitted (control, detection tools). Pneumatic pliers

Please contact our sales team who will introduce you to the whole range of CAILLAU" fitting tools and help you define which is best suited to your requirements.
